QXSP-T2080 3U VPX SBC
designed with the QorlQ T2080 processors, up to 1.8GHz four- core processors with e6500 cores built on Power Architecture® technology, each core has a private 2MB L2 cache, 512 KB shared L3 CoreNet platform cache(CPC).

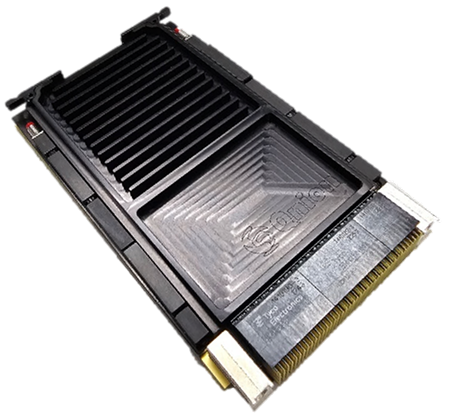

Qnius XSP-T2080 3U VPX SBC
useful at the most demanding applications in embedded defense / aerospace applications. The VPX form factor allows for high speed 2x4 lane PCI Express fabric ports.
Backplane
supported a variety of interfaces such as VPX, RS-232/422, and 2 x Ethernet(GbE), 2 x MIL-STD-1553B, 1 x SATA 2.0, 2 x USB 2.0, and GPIO also. It is designed to operate in the harsh environments. It is targeted to the threat signal data / signal processing needs of tactical aircraft, armored vehicles and harsh environment naval system.
Software
supported U-boot with BIT and OS Support for VxWorks® 7 and Optional Linux 4.x
※ MTBF - Qnius XSP-T2080 3U VPX SBC
20,000h/25℃ (AUF(Airborne, Uninhabited, Fighter)) 275,000h/25℃ in the GB (Ground, Benign)
Technical Spec.
Rugged 3U VPX
- Length : 160mm× 100mm
Memory & Storage
- 8GB DDR3L SDRAM , 2MB MRAM
- 256MB NOR Flash, 40GB SSD (up to 160GB)
RTOS Support
- Built-In Test(BIT)
- Bootloader : U-boot
- Wind River VxWorks 7.x 64bit
- Linux 4.x
Power
- Power Supply Voltage +5V
- Power Type DC-in
- Power Consumption 30W(Max) , 20W (Typ.)
Environmental Specifications
- Operating Temperature : -40 to +85℃
- Storage Temperature : -55 to +125℃
I/O Interface
- Two Ethernet MACs(10/100/1000)
- Two Serial ATA(SATA2.0) Controller
- One Serial ATA Interface for backplane - One I2C Controller
- I2C-GPIO( x16 GDIO)
- I2C-Temperature Senor
- I2C-RTC (Alarm function) - Up to two MIL-STD-1553B
- Up to four UART
- 2×RS232, 2×RS422 - Up to two USB2.0
- SPI Interfaces
Others
- 4 Lane PCI Express 2 Channel
- VPX & OpenVPX with VITA 46, VITA48 and VITA65(OpenVPX) support / Conduction-Cooled
- Conduction-Cooled
※ Specification subject to change by the manufacturer.
